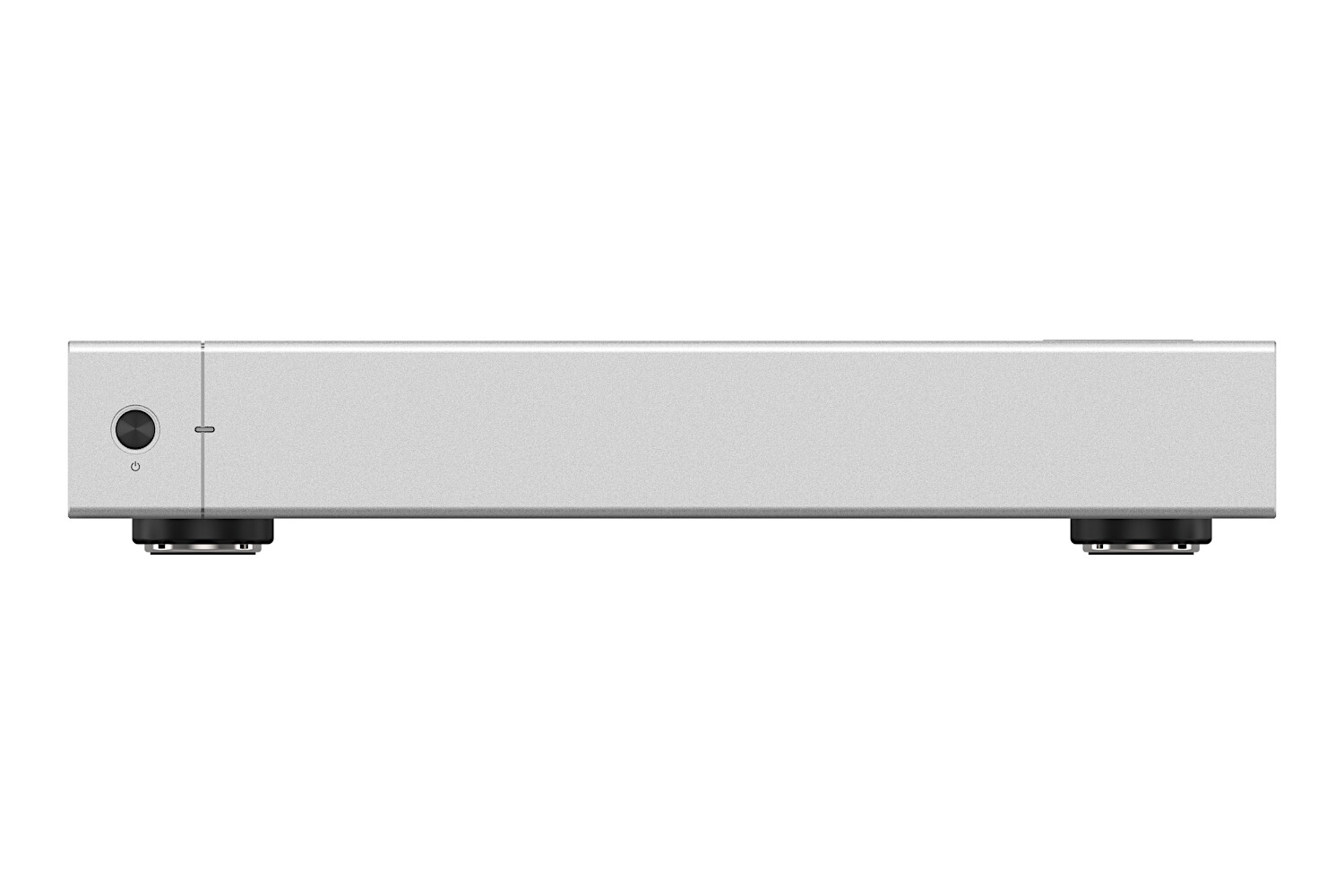

Element P2 Audio Power Amplifier

A powerful fulcrum of your Hi-Fi system

Continuing with the element series family design language, the element P2 power amplifier inherits the simple and modern design. With class D amplification technology, the front-end devices can be easily combined, providing plenty of power to various speakers. Let your whole audio system perform better than ever.

The outside matches the inside

The appearance of element P2 matches with the element product line from Matrix, which looks elegant at every angle. It integrates with your home furniture organically. Audio equipment is no longer a cold and heartless block, with an element P2, it is so easy to build an ideal sound system with both perfect sound and beautiful look.

Multiple input methods

An excellent power amplifier is essential for flexible input methods. The element P2 is equipped with RCA and XLR input ports. No matter your front-end device has balanced or single-ended output, delivers the original signal of music to the amplifier authentically and accurately.

Stereo mode

In stereo mode, the element P2 provides 230W output power to each channel at 4 ohms load, drives bookshelf speakers or small floorstanding speakers effortlessly. The sound will take you to the real stage, keep every detail of the music, fully interpret the meaning of Hi-Fi.

Double power on mono mode

With two element P2 which are configured to mono mode, each amplifier works with one speaker, you'll get 850W output power from each channel at 4 ohms load. Unleash the full potential of your speaker system, even with low-sensitivity floor-standing speakers.

Fine music starts on a "trigger"

Techniques make people lazier. When the element P2 is connected to a front-end device which has trigger ports, the unit will enter working status immediately from standby mode without manual operations.

Brilliant connectors from WBT

With the newly added "moment of force indicator" to the hand-tightened part of WBT-0708 Cu, the pole terminals and the spades of speaker wires are protected effectively. The terminal uses hollow design, the conductors are gold-plated on pure copper and anti-oxidation treated. To effortlessly achieve a low impedance connection with high reliability, and easily cope with instantaneous high current. Always ready to provide sufficient power for magnificent music.

Ceramic Ball Vibration Buffer

The element P2 is equipped with CBVB pads. The core of CBVB is made of ceramic balls and silicone rubber. There are 6 ceramic balls in each pad to minimize the noises caused by mechanical vibration. The transparency of the sound is further improved, creating a wide and clear sound stage for you.

Specifications

Analog Input

• Stereo mode RCA input:
  Input impedance: 47kΩ
  Gain: 28dB@1kHz
• Stereo mode XLR input:
  Input impedance: 47kΩ
  Gain: 34dB@1kHz
• Mono mode XLR input:
  Input impedance: 47kΩ
  Gain: 34dB@1kHz

Speaker Output

• Stereo Mode:
  Output power: 2 x 230W @ 1% THD+N, 20Hz – 20kHz, 4Ω. 2 x 110W @ 1% THD+N, 20Hz – 20kHz, 8Ω
  DNR: 112dB A-weighting
  Frequency Response: 20Hz-20kHz ±0.3dB
  THD+N = 0.008% @ 1W
  Output impedance: <25mΩ
• Mono Mode:
  Output power: 500W @ 1% THD+N, 20Hz – 20kHz, 8Ω. 850W @ 1% THD+N, 20Hz – 20kHz, 4Ω
  DNR: 121dB A-weighting
  Frequency Response: 20Hz-20kHz ±0.3dB
  THD+N: THD+N = 0.004% @ 1W
  Output impedance: <30mΩ

Trigger:

• Trigger in: DC 6-12V<10mA
• Trigger out: DC 12V/50mA MAX

Power Specs:

• Power Voltage: AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz
• Standby Power Consumption: < 5W
• Maximum Power Consumption: < 1200W

Weight & Size:

• Weight: 3.7kg (8.16 pounds)
• Size:
  Width: 340 mm (13.39 inches)
  Depth: 259 mm (10.20 inches)
  Height: 58 mm (2.28 inches)

Accessory

• Power cable: x1
• Quick start guide: x1
• Warranty card: x1
