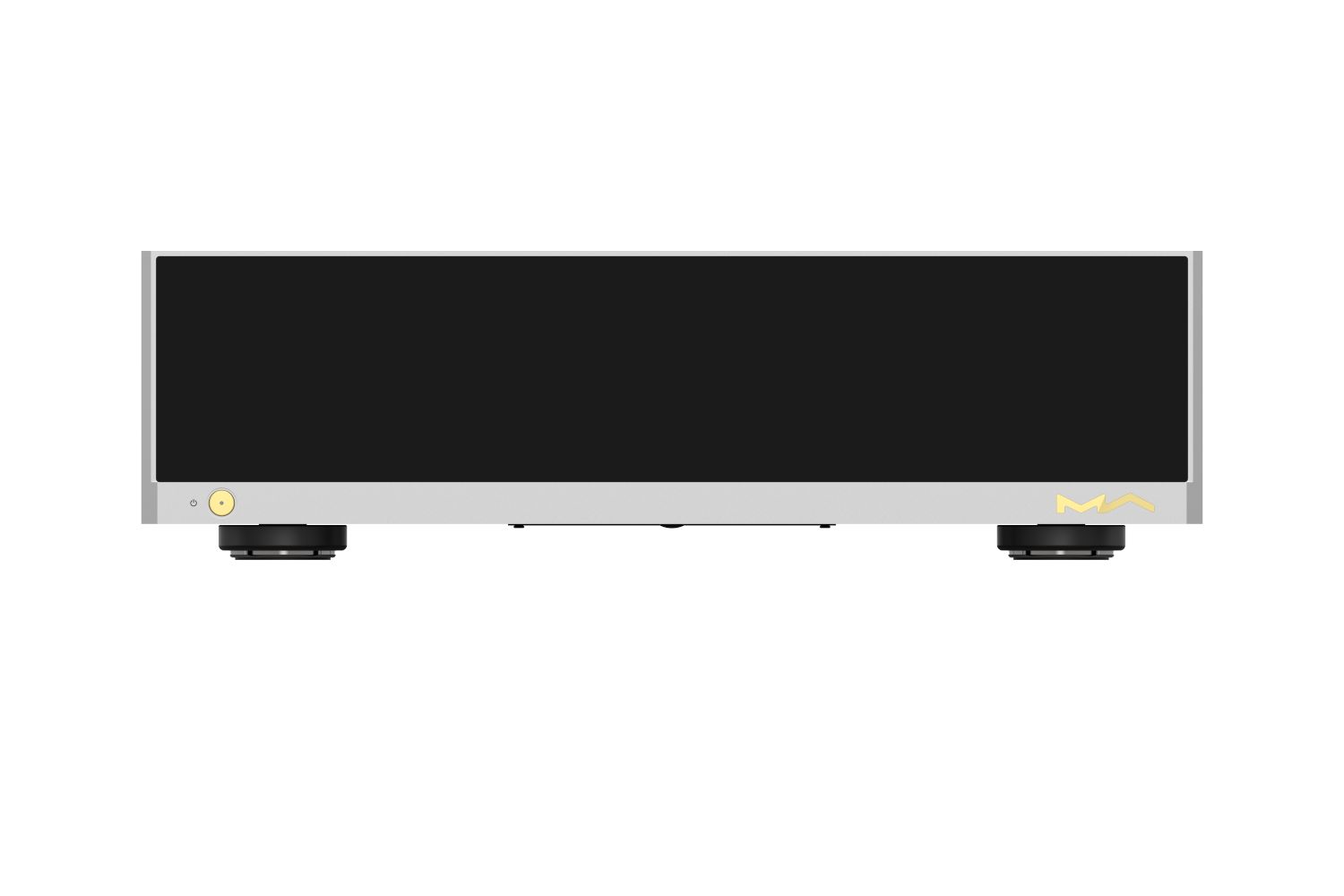

NT-1 Digital Audio Transport

Reshaping the Listening Landscape

Matrix Audio proudly presents the NT-1, a groundbreaking masterpiece designed for audiophiles in pursuit of perfection. This high-end digital audio transport unlocks the vast world of network streaming, extending beyond the limitations of traditional audio sources, and infuses your audio system with new energy.

Inheriting And Upgrading

Matrix Audio introduces a new family design language, equipped with the same Hi-Fi streaming hardware as the M Series. With a powerful core upgrade and a next-level display enhancement, it delivers a brand-new experience that captivates both your ears and eyes.

Continuous Evolution - Easier To Use!

The ever-evolving MA Player Hi-Fi Streamer OS and MA Remote App seamlessly adapt to both iOS and Android devices. Whether on a smartphone or a tablet, enjoy a smooth and intuitive interactive experience.

Unlimited Resources At Your Fingertips

MA Player Hi-Fi Streamer OS

Enjoy Local & Cloud Music

Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud, such as Baidu Netdisk, it can also be mounted directly on the device.

Premium Feature Set

• One Touch Copy
• Dual USB 3.0
• CD Player
• Auto CD Ripping

SSD Storage - Fast And Quiet

The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.

Shareable Internal Storage

With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

Smart Wake Up & Trigger Control

Whether playing local music or online streaming audio, the device can be automatically woken up. And the back-end DAC or amplifier can be started through the trigger connection, which is automatic and convenient without any manual operation.

Excellent Clock System

This clock system derives from the flagship model of Matrix Audio, which has dual modes. In internal clock mode, the femtosecond clock provides a reference for the RF synthesizer, outputting a highly stable, low-phase-noise audio clock. In external clock mode, the incoming clock signals become the reference for the RF synthesizer, outputting an audio clock that is highly stable, low-phase-noise, and phase-synchronized with the input clock. When paired with Matrix Audio SC-1 audio-grade clock source, it can further tap into the audio performance potential of the device and move to an even higher level.

Multiple Interfaces

Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.

Ensure Pure Audio Transmission

NT-1 features an audio-specific USB DAC interface with electrical isolation. It not only deeply optimizes transmission noise, but also isolates the ground ware of USB port from the device ground wire, fundamentally reducing noise and interference during audio transmission and ensuring the purity of the audio signal.

It is worth mentioning that the linear power supply of NT-1 is unique, with independent windings and a precise low-noise regulator circuit, providing the USB DAC interface with a dedicated power supply isolated from the digital part, further ensuring the stability and low noise of audio transmission, and bringing you the ultimate Hi-Fi experience.

Flexible Connection Options

With different SFP modules, you can freely expand a optical fiber or Ethernet ports as needed. When used with audio grade network switch from Matrix Audio, it can create a more efficient and stable network connection to meet the needs of Hi-Fi scenarios.

Full Linear Power

The power supply system is built by a 60W toroidal transformer and multiple LDOs. The power for the digital audio processing core and the USB DAC interface are supplied by two independent windings of the transformer, ensuring stable operation of each part and effectively reducing noise interference.

Specifications

Network

• LAN: 10/100/1000 Mbps
• SFP: 10/100/1000 Mbps

USB

• USB 3.0 *2
• The USB port provides a maximum power of 5V/1.5A.
• The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

External Clock Input

• 10MHz / 50Ω / Sine wave or square wave input

Trigger Interface

• Trigger Input: DC 6-12V <10mA
• Trigger Output: DC 12V/50mA MAX

Storage Extension

• M.2 2280 2260 2240 NVMe PCIe SSD slot x 1

Power Specs

• Power Voltage: AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz Auto Range
• Standby Power Consumption: < 5W
• Maximum Power Consumption: < 50W

Weight & Size

• Weight: 4.6kg (10.14 pounds)
• Size:
  Width: 330 mm (12.99 inches)
  Depth: 267 mm (10.51 inches)
  Height: 97 mm (3.82 inches)

Accessory

• Power cable x 1
• Printer material x 1
