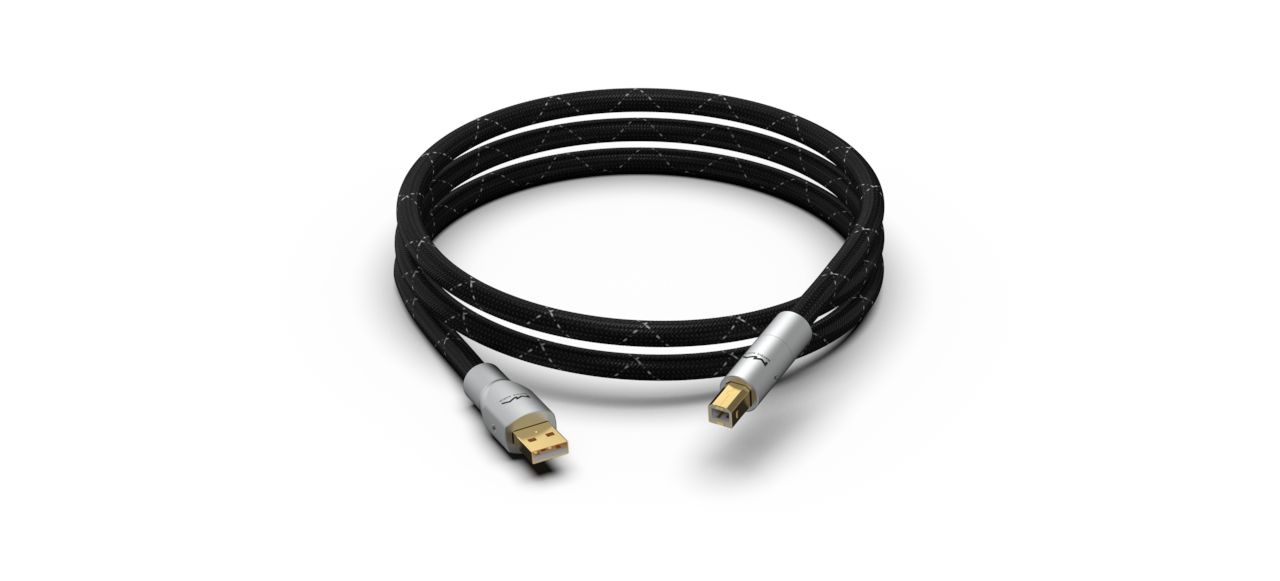

OCC USB 2.0 Cable

Evolution Again

Matrix Audio's second-generation USB cable for Hi-Fi audio systems. Compared to the first generation, the new USB cable is more pliable and bendable, making it more device-friendly and reducing stress on the connectors. The differential pair impedance characteristics and shielding performance have been enhanced, ensuring more stable and reliable data transmission, helping you to refine your Hi-Fi system.

The Hidden Differences

Each cable is braided and twisted from 7 strands of 0.2mm² OCC wires. The differential data wires are shielded with an aluminum foil wrap, which provides shielding isolation between the data and power wires, effectively reducing interference. The OFC wire braid and aluminum foil, forming a second layer of shielding to block external electromagnetic interference. The exterior is covered with a nylon and cotton braided sleeve, which is both aesthetically pleasing and effectively protects the cable.

More Than Reliable

The CNC aluminum connectors designed by Matrix Audio, feature 50µm gold-plated pins, reducing connection resistance and preventing pin oxidation. Compliant with USB 2.0 protocol for transmission speeds of 480Mbps, these cables offer excellent data transfer stability and high cost-effectiveness.

Always Applicable

To adapt to different devices, the cable features USB Type A and Type C connectors, suitable for connecting to computers, digital audio players or mobile devices such as phones and tablets. Additionally, the cable is available in two lengths. For connecting to computers, you can choose the 1.2m cable, while for stacking setups with digital audio players or similar devices, the 0.3m cable helps avoid tangling and coiling.

Specifications

Length

• 0.3m/1.2m

Diameter

• 7.3mm (Including braided nylon sleeve)

Specs of main conductor

• 0.22mm² x4

Material of main conductor

• 6N OCC x2 / 6N OFC x2

Plug head

• USB Type A / USB Type C

Plug end

• USB Type B

Max transmit speed

• USB 2.0 480Mbps
