Orders will ship the end of May.

TT-1 Digital Audio Transport

Advanced Choice

TT-1 is a mid-range digital audio transport from Matrix Audio. Inheriting the essence of Matrix Audio's core technologies, it also leaves room for future upgrades. Whether you are an audiophile seeking enhanced sound quality or an advanced audio enthusiast looking to elevate your digital source, the TT-1 is an excellent digital source for your audio system.

Inheriting And Upgrading

Matrix Audio introduces a new family design language, equipped with the same Hi-Fi streaming hardware as the M Series. With a powerful core upgrade and a next-level display enhancement, it delivers a brand-new experience that captivates both your ears and eyes.

Continuous Evolution - Easier To Use!

The ever-evolving MA Player Hi-Fi Streamer OS and MA Remote App seamlessly adapt to both iOS and Android devices. Whether on a smartphone or a tablet, enjoy a smooth and intuitive interactive experience.

Play Your Way!

MA Player Hi-Fi Streamer OS

Enjoy Local & Cloud Music

Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud, such as Baidu Netdisk, it can also be mounted directly on the device.

Premium Feature Set

• One Touch Copy
• Dual USB 3.0
• CD Player
• Auto CD Ripping

SSD Storage - Fast And Quiet

The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.

Shareable Internal Storage

With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

Smart Wake Up & Trigger Control

Whether playing local music or online streaming audio, the device can be automatically woken up. And the back-end DAC or amplifier can be started through the trigger connection, which is automatic and convenient without any manual operation.

Dual Femtosecond Clock

Equipped with two ultra-low phase noise femtosecond clocks, each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples. Powered by independent low-noise linear regulators, and with intelligent control through FPGA, it automatically handles frequency division and switching operations. This design lays a solid foundation for low-jitter digital audio output.

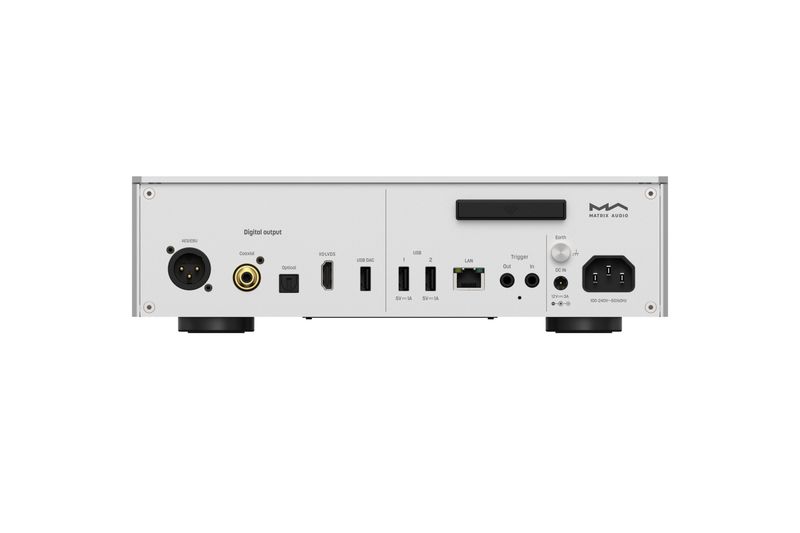

Multiple Interfaces

Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.

Dedicated Interface For Lossless Audio

TT-1 features an audio-specific USB DAC interface with electrical isolation. It not only deeply optimizes transmission noise, but also isolates the ground ware of USB port from the device ground wire, fundamentally reducing noise and interference during audio transmission and ensuring the purity of the audio signal.

It is worth mentioning that the linear power supply of TT-1 is unique, with independent windings and a precise low-noise regulator circuit, providing the USB DAC interface with a dedicated power supply isolated from the digital part, further ensuring the stability and low noise of audio transmission, and bringing you the ultimate Hi-Fi experience.

Flexible Connection Options

With different SFP modules, you can freely expand a optical fiber or Ethernet ports as needed. When used with audio grade network switch from Matrix Audio, it can create a more efficient and stable network connection to meet the needs of Hi-Fi scenarios.

Option For Linear Power

The TT-1 is specially designed with an DC power input to unlock its full performance potential with adding a linear power supply. When both external power and AC power are connected, the system prioritizes the external power supply and disconnects the AC power, retaining only the ground connection. Additionally, the product is equipped with a power filter and multiple low-noise LDOs to power each circuit unit independently, ensuring pure and stable power delivery in every aspect.

Specifications

Digital Output

• COAXIAL, OPTICAL & AES/EBU:
  PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  DSD 2.8MHz (DoP)

• IIS LVDS:
  PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
  DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
  DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
• USB DAC:
  Depends on the specifications supported by the connected USB DAC device. Not higher than PCM 32bit/768kHz and DSD 24.58Mhz.
  The USB DAC port provides a maximum of 5V/1A low-noise power supply.

Network

• LAN: 10/100/1000 Mbps
• Wi-Fi: 2.4 Ghz / 5 Ghz

USB

• USB 3.0 *2
• The USB port provides a maximum power of 5V/1.5A.
• The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

Trigger Interface

• Trigger Input: DC 6-12V <10mA
• Trigger Output: DC 12V/50mA MAX

Storage Extension

• M.2 2280 2260 2240 NVMe PCIe SSD slot x 1
• The maximum power specification provided by the expansion slot is DC 3.3V/3A.


Power Specs

• AC Input:
  Wide voltage switching power supply
  Power Voltage: AC 100V-240V 50/60Hz
  Power Consumption: < 35W
• DC Input:
  External power voltage: DC 12V ± 10%
  External power wattage: Larger than 35W
  Power plug: Outer diamter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)

Weight & Size

• Weight: 2.76kg (6.08 pounds)
• Size:
  Width: 280 mm (111.02 inches)
  Depth: 210 mm (8.27 inches)
  Height: 82 mm (3.23 inches)

Accessory

• Power cable x 1
• Printer material x 1
